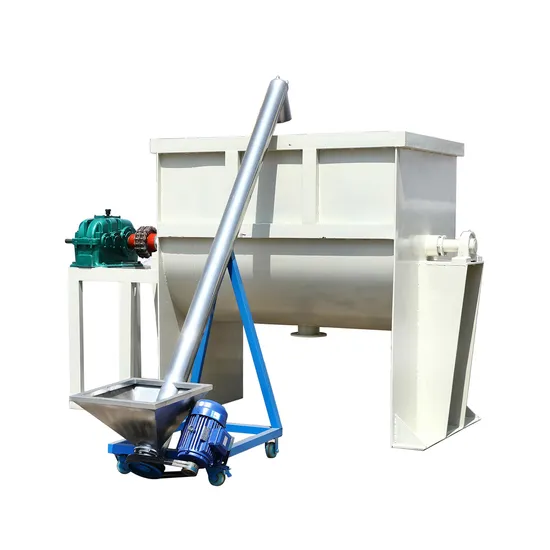

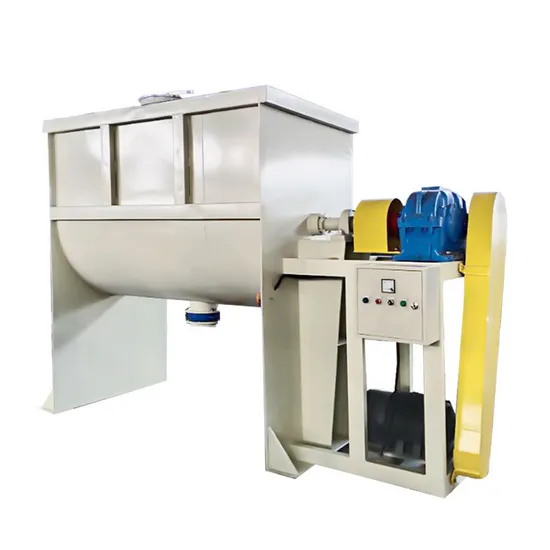

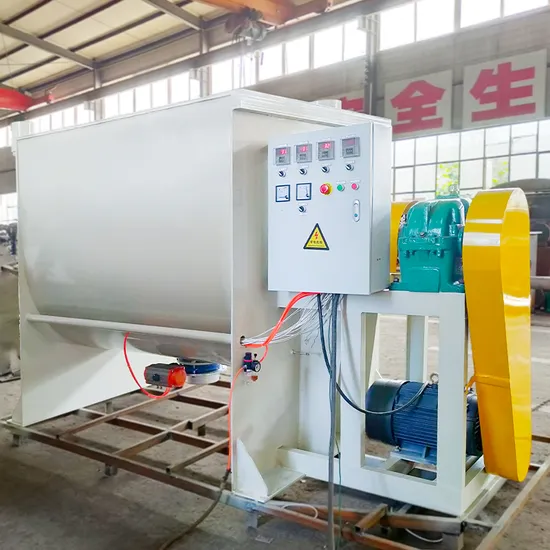

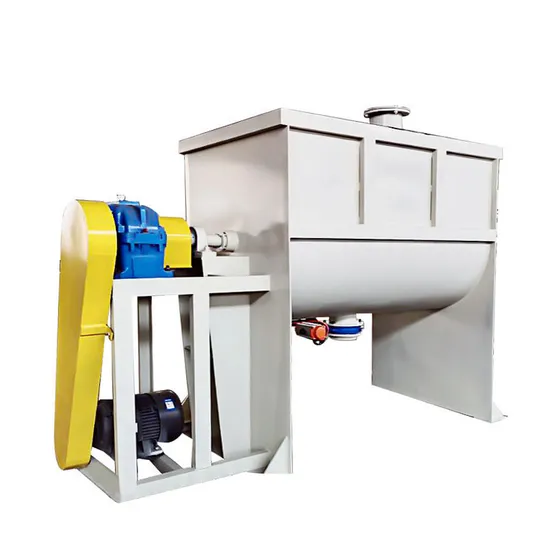

High-efficiency industrial ribbon blender for rapid, homogeneous mixing of powders and granules in chemical, food, and feed applications.
Features a horizontal U-shaped tank and a dual-screw ribbon structure for effective and homogeneous material mixing in 5-10 minutes.
The inner screw pushes material from the center to the sides, while the outer screw moves it from sides to the center, ensuring a thorough blend.
Equipped with a robust gearbox-driven auger shaft, ensuring low noise, minimal malfunction, and extended service life.
Designed with a pneumatic cylinder-controlled discharge exit for efficient material release and easy cleaning.
Constructed from durable SUS304 or SUS316L stainless steel for contact parts, meeting CE and ISO certification standards.
Offers optional heating and cooling functions and is fully customizable to meet specific processing requirements.
Material: Contact parts in SUS 304/316L Stainless Steel; other parts in carbon steel.
Mixing Capacity: Models available from 500L to 8000L.
Motor Power: Ranges from 5.5 KW for 500L model to 45 KW for 8000L model.
Rotational Speed: Varies from 23 to 41 r/min depending on model size.
Plate Thickness: Ranges from 4mm to 8mm, ensuring structural durability.
Control System: Button control with available PLC integration and optional Mettler-Toledo weigh module.
